Corrugated Carton Slotting Knife for Box Making Machines
Precision-ground slotting knives for flexo folder gluers and rotary die-cutters. Made from SKD11, D2 and HSS tool steel, each blade holds a burr-free edge through millions of cuts — and we build to your machine drawing, not to a stock size.
- ±0.02 mmDimensional
tolerance - 52–58 HRCThrough-
hardened - 7–15 DaysStandard
lead time - OEM / ODMBuilt to your
drawing
The corrugated carton slotting knife from Dekeer is a high-performance packaging blade engineered for modern box making machines. Manufactured from premium tool steels (SKD11/D2/HSS) with precision CNC grinding, each corrugated carton slotting knife delivers sharp, clean, and burr-free cuts across corrugated cartons, cardboard, and heavy paperboard. Built for exceptional durability and extended service life, our industrial slotting blades ensure stable performance in high-speed carton manufacturing lines. We offer full OEM customization for sizes, thicknesses, and hole patterns to fit your equipment. View our Packaging Machine Blades and Carton Box Slotting Knife options, or check external standards via ISO Standards for tooling guidelines.
Talk to a slotting knife engineer
Send your machine model, a dimensioned drawing, or a photo of the blade you need replaced. Our engineering team confirms dimensions, material grade and price within 24 hours — free of charge, no obligation.
Customizable Corrugated Slotting Knives for Various Machines

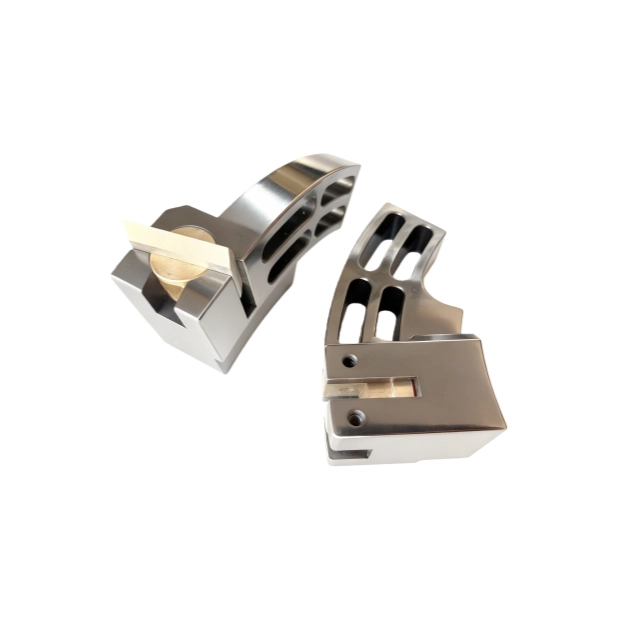

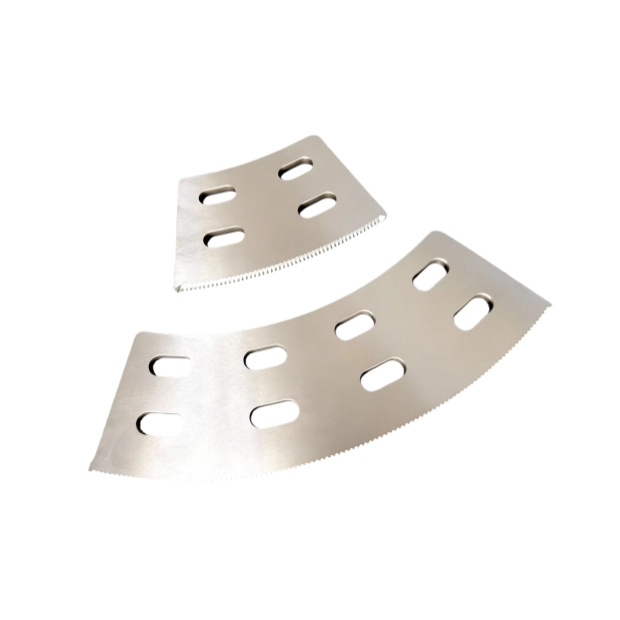

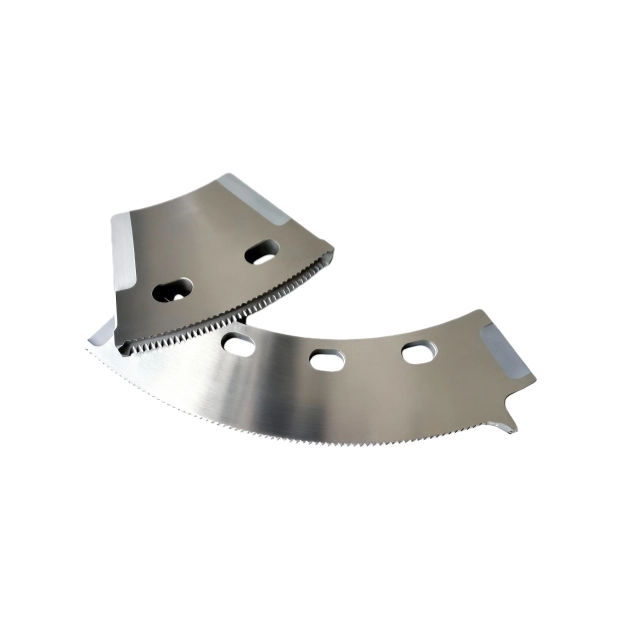

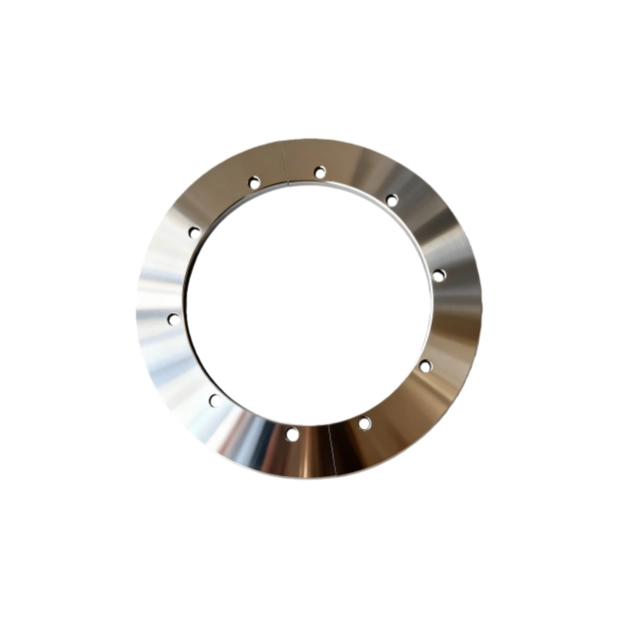

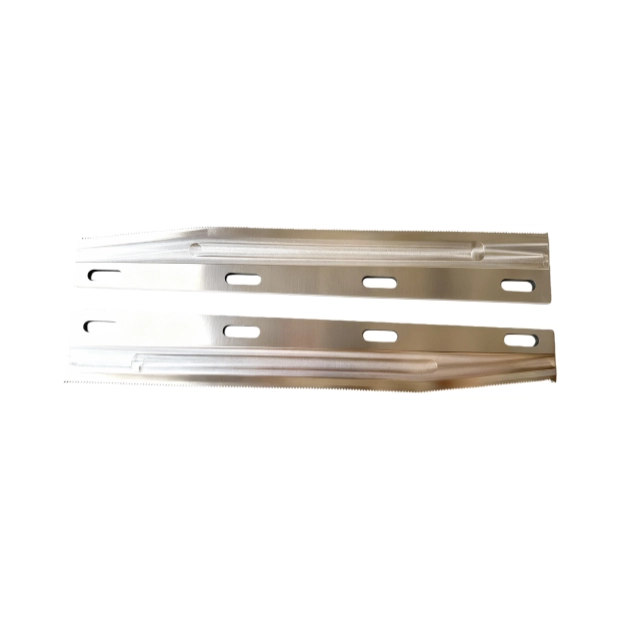

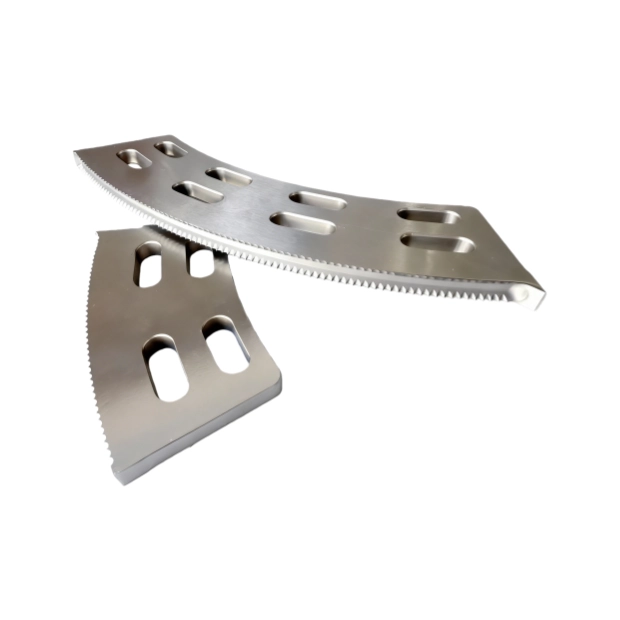

Product Gallery
Slotting Effect Display
Extended Blade Lifespan with Premium SKD11/D2 Steel
Through-hardened tool steel holds its edge through millions of cuts.
Precision Ground for Clean & Burr-Free Slotting
Mirror-ground edge, Ra ≤ 0.4 μm, for clean carton edges.
High Compatibility with Leading Box Making Machines
BHS, TCY, Mitsubishi, Fosber, Marquip and more — matched to your machine model.
Custom Sizes, Thicknesses & Hole Patterns Available
Send a drawing or a sample blade — MOQ from 1 set for fully custom tooling.
Technical Specifications of Corrugated Slotting Blades
| Item | Specification |
|---|---|
| Product name | Corrugated carton slotting knife (box grooving blade) |
| Base material | SKD11, D2, HSS-M2, or customer-specified tool steel |
| Hardness | 52–58 HRC, through-hardened for uniform wear across the body |
| Blade thickness | 2–12 mm (custom thickness available) |
| Blade length | Up to 2600 mm, manufactured to machine drawing |
| Cutting edge angle | 30°–60°, ground to customer specification |
| Edge finish | Mirror ground, burr-free; Ra ≤ 0.4 µm |
| Dimensional tolerance | ±0.02 mm |
| Flatness | ≤ 0.05 mm per 1000 mm |
| Mounting holes | Produced to OEM drawing, sample blade, or supplied template |
| Surface treatment | Precision ground (standard); black oxide or TiAlN coating (optional) |
| Suitable materials | Kraft board, 3/5/7-ply corrugated board, heavy paperboard, cardstock, honeycomb paper, foam board |
| Compatible machines | BHS, TCY, Mitsubishi, Fosber, Marquip, Dongfang and other flexo slotters / rotary die-cutters |
Ordering & Commercial Terms
| Item | Terms |
|---|---|
| Minimum order | 5 pcs for standard sizes; 1 set for fully custom tooling — trial orders accepted |
| Lead time | 7–15 working days for standard sizes; exact schedule confirmed at order |
| Sample | Free sample for quality evaluation (freight collect) |
| Packing | Anti-rust paper wrap + export wooden case |
| Quality documents | Material Test Certificate (MTC) and dimensional inspection report with every shipment |
| Warranty | 12 months against manufacturing defects |
| Payment terms | T/T (30% deposit, balance before shipment) or L/C at sight |
| Customization | OEM / ODM — drawing, sample, or machine model accepted |
Machine Compatibility & Reference Sizes
Below are the slotting knife sizes we are asked for most often, grouped by machine platform. Dimensions vary between machine generations and board widths, so treat this table as a reference and confirm against your own machine drawing — or send us the model number and we will match it for you.
| Machine platform | Reference length | Common thickness | Typical application |
|---|---|---|---|
| BHS flexo folder gluer | 1600 / 1800 / 2200 mm | 6 / 8 mm | High-volume corrugated box lines long run |
| TCY rotary slotter | 1200 / 1600 mm | 6 mm | Medium-format carton plants |
| Mitsubishi (Sumo series) | 1800 / 2200 mm | 8 mm | High-speed scoring and slotting |
| Fosber | 1600 / 2000 mm | 6 / 8 mm | Double-wall and heavy board |
| Marquip / Ward | 1200 / 1600 mm | 6 mm | Replacement and retrofit supply |
| Dongfang / Kama | 1200 / 1600 mm | 6 mm | Asian machine platforms |
| Other models | Made to drawing | 2–12 mm | Send model, drawing or sample photo |
Machine not listed? No problem — over half of our slotting blades are made for machines outside this table. Send the model number, a dimensioned drawing, or a photo of the blade you need replaced, and we will confirm the specification and price within 24 hours.
Send Your Machine ModelMaterial Selection Guide: SKD11 vs D2 vs HSS
The steel grade decides how long your blade keeps its edge and how it behaves on your board. We stock three grades and machine all of them to the same tolerance — the right choice depends on your board type, line speed and how often you can afford to stop for a blade change.
| Material | Hardness | Wear resistance | Toughness | Relative cost | Best suited to |
|---|---|---|---|---|---|
| SKD11 (Cr12MoV) | 58–60 HRC | Very high | Medium | Medium | General-purpose slotting across single, double and triple-wall board |
| D2 (AISI D2) | 58–62 HRC | Excellent | Medium-low | Medium-high | Abrasive recycled board and long runs — maximum edge retention between regrinds |
| HSS-M2 (molybdenum) | 62–65 HRC | High | High | High | Thin board, high-speed lines, and machines where the blade sees impact |
Choose SKD11
58–60 HRC · medium cost
The default for most corrugated box plants. The best balance of wear resistance and price, and it handles the full range of single, double and triple-wall board without fuss.
Choose D2
58–62 HRC · medium-high cost
When abrasive recycled board and long production runs dominate. Its higher carbide content gives the longest edge retention, though it is slightly less forgiving of shock loading.
Choose HSS-M2
62–65 HRC · high cost
For thin board, high-speed lines, or machines where blades take impact. The highest toughness keeps the cutting edge from chipping, at a higher material cost.
Still not sure which grade fits? Send us your board type, machine model and expected production volume. Our engineers will recommend a grade and edge geometry for your line — and if you are replacing an existing blade, we can usually identify what it was made from in a photo.
Applications of Packaging Box Slotting Knives
Automatic Corrugated Box Production Line
High-speed continuous slotting of single-, double- and triple-wall corrugated board on automatic flexo folder gluers — consistent edges at full line speed.
Carton Forming & Die-cutting Equipment
Clean creases and smooth folding on carton forming and die-cutting lines, where accurate slotting determines fold quality and box squareness.
Packaging Factory Custom Box Processing
Non-standard slotting machinery and custom carton work — blades made to your drawing for logistics packaging and commodity outer boxes.
Why Choose Dekeer as Your Industrial Blade Manufacturer?
Manufacturing Capability & Service
01 — Direct factory
Manufacturer, not a trading companyDekeer Precision Cutting Tools (Nanjing) Co., Ltd. machines every blade in-house, so you buy at factory price with no middle margin.
02 — Custom build
OEM / ODM to drawing or sampleSend a drawing, a worn blade, or just the machine model. We reproduce hole pattern, edge angle and thickness to match.
03 — Documented quality
Certificate with every shipmentEach order ships with a Material Test Certificate and a dimensional inspection report, so incoming QC is straightforward.
04 — After-sales
12-month warranty and supportCovered against manufacturing defects for 12 months, with engineering support on selection and edge geometry.
How an order runs, from enquiry to delivery
- 1Send your specDrawing, machine model or blade photo
- 2Quote in 24hDimensions, material and price confirmed
- 3Confirm drawingYou approve the final specification
- 4ProductionCNC grinding with in-process checks
- 5Final inspectionTolerance check + material certificate
- 6Export packingAnti-rust wrap, wooden case, shipment
