High-Speed Printing Solution for Demanding Production

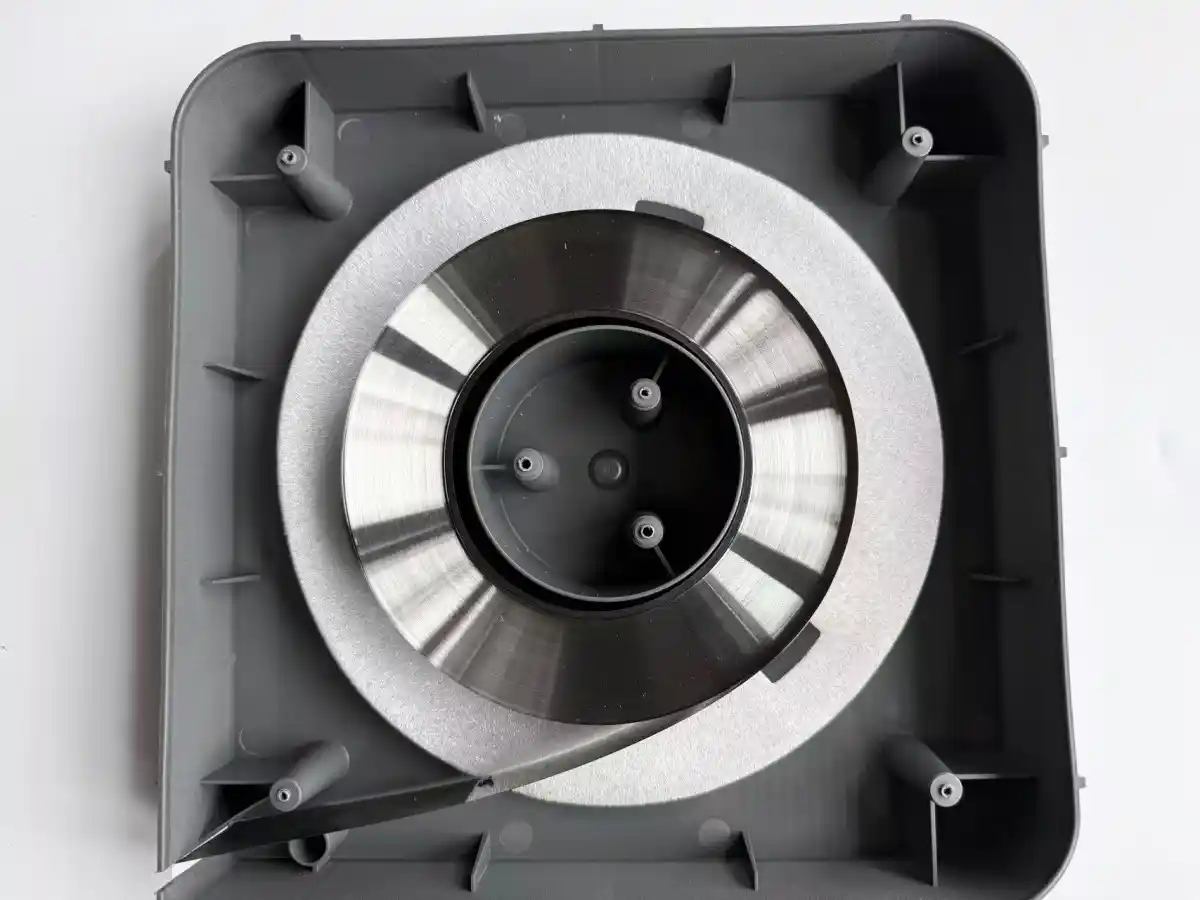

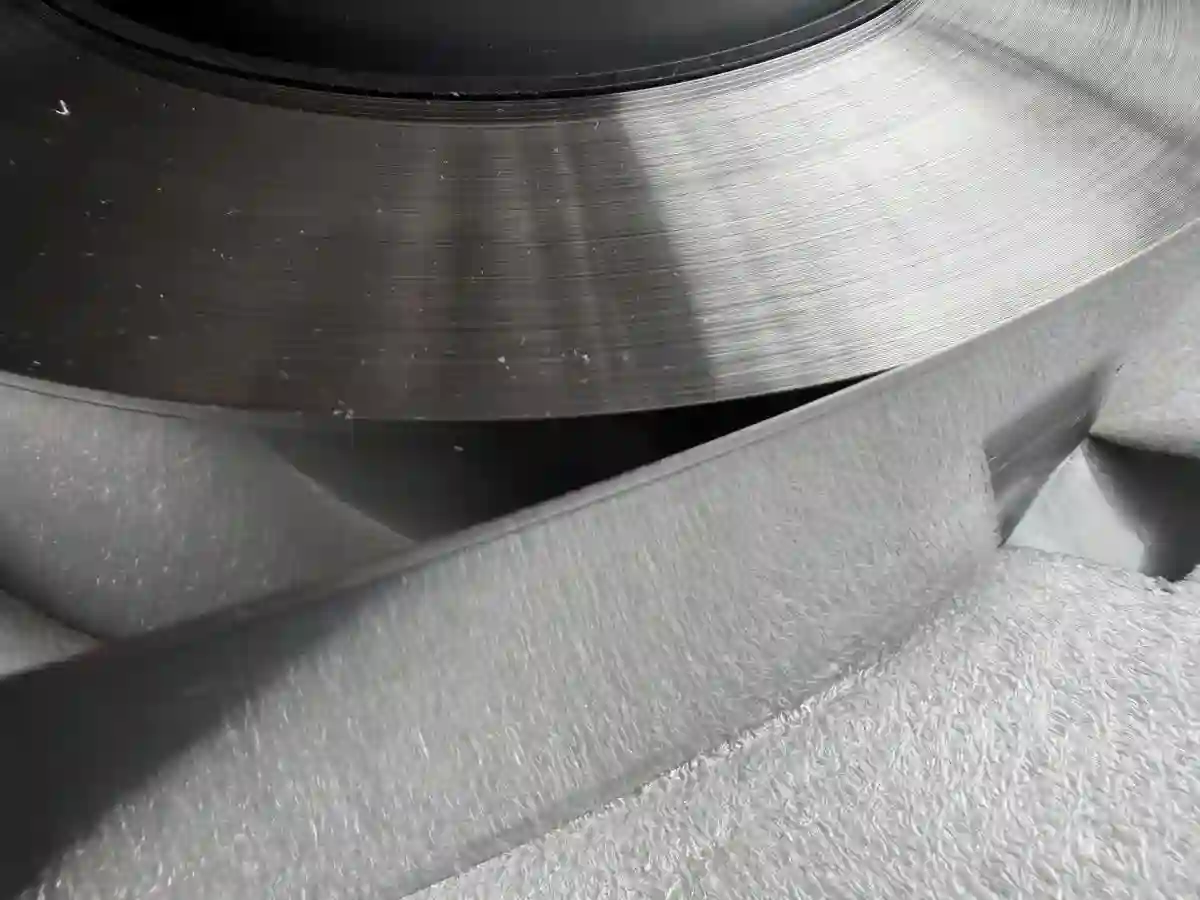

The SE Series Carbon Steel Doctor Blade is purpose-built for high-speed gravure printing, flexographic printing, and industrial coating applications. Made from European carbon steel, it provides superior durability and edge retention, even under the extreme conditions of high-speed presses.
This blade effectively controls ink transfer, ensures uniform ink metering, and reduces common issues like streaking and uneven color density. Optimized for solvent-based inks and varnishes, it maintains consistent print quality at speeds up to 350 m/min, helping to maximize production efficiency and minimize downtime in high-volume printing operations.
Key Advantages
|
SE Series high-performance doctor blade
Made of high-quality carbon steel from Europe for premium quality and reliability. |
High-speed printing doctor blade
Designed for high-speed printing presses, handling speeds up to 350 m/min with stable performance. |
|
Wear-resistant printing blade
Engineered for continuous high-volume production, offering long service life and minimal downtime. |

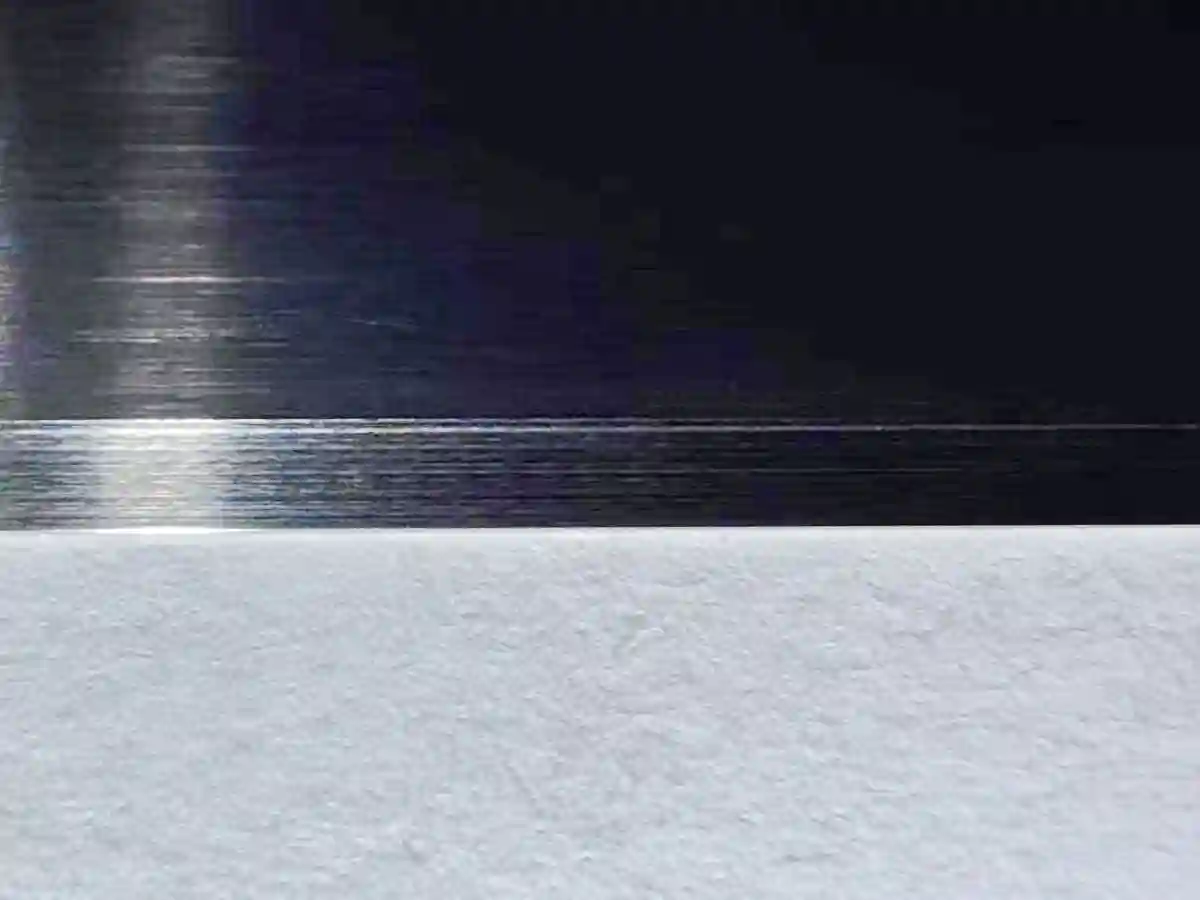

Precision-ground doctor blade
Features uniform thickness and excellent straightness for precise ink metering and consistent print results. |
|
Multi-ink compatible blade
Ideal for use with solvent-based inks and varnishes in various printing applications. |
Gravure & flexo doctor blade
Versatile for high-speed gravure printing, flexographic printing, and industrial coating processes. |
Product Parameters
| Material | Imported High Carbon Steel |
| Width Range | 10mm – 60mm |
| Width Tolerance | ±0.1mm |
| Thickness Range | 0.152mm – 0.203mm |
| Thickness Tolerance | ±0.005mm |
| Hardness | 630-650HV |
| Tensile Strength | 1850-2100MPa |
| Straightness | ≤0.5mm / 3000mm |
Available Dimensions
| Width | Thickness | Length |
| 10mm | 0.15mm | 100m |
| 30mm | 0.15mm | 100m |
| 30mm | 0.20mm | 100m |
| 35mm | 0.15mm | 100m |
| 35mm | 0.20mm | 100m |
| 40mm | 0.15mm | 100m |
| 40mm | 0.20mm | 100m |
| 50mm | 0.15mm | 100m |
| 50mm | 0.20mm | 100m |
| 60mm | 0.15mm | 100m |
| 60mm | 0.20mm | 100m |
