Carbon Steel Doctor Blades

video
product name

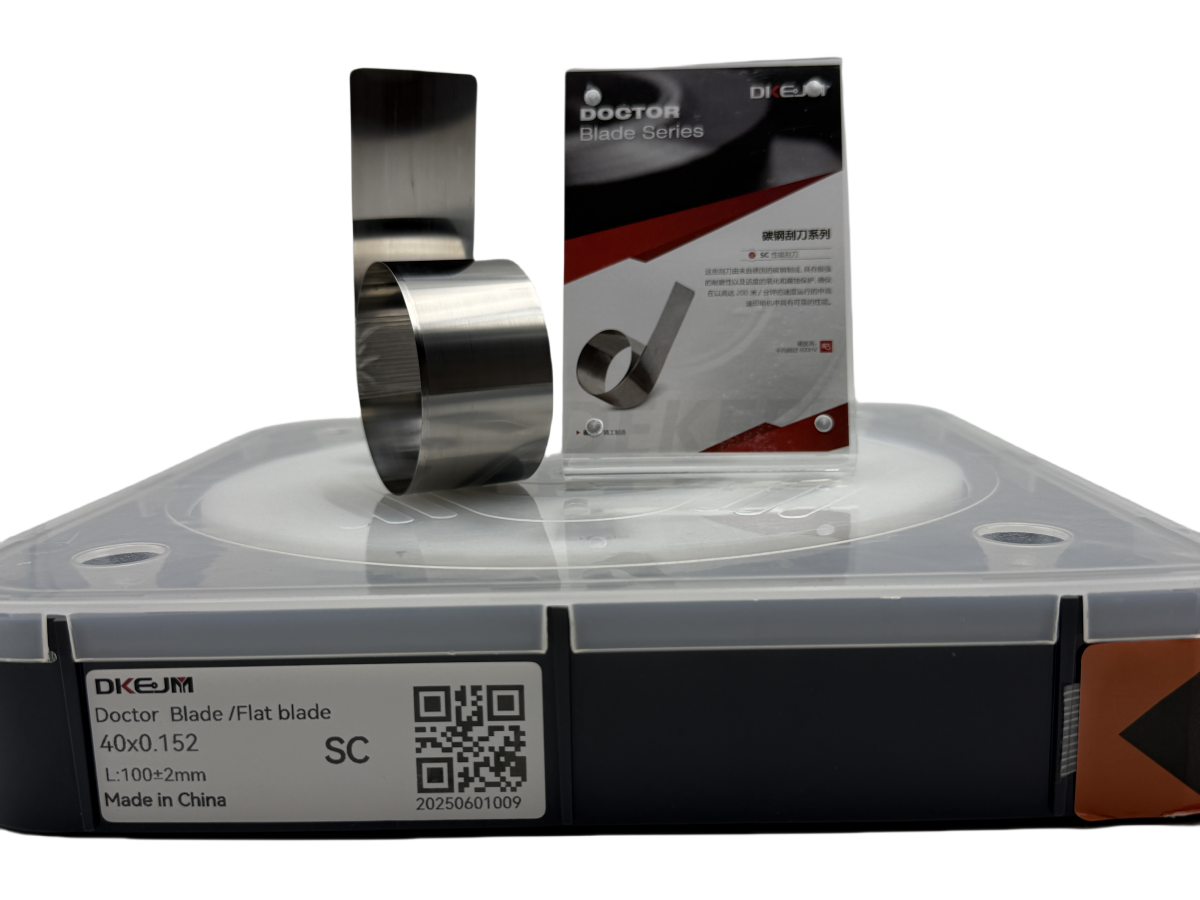

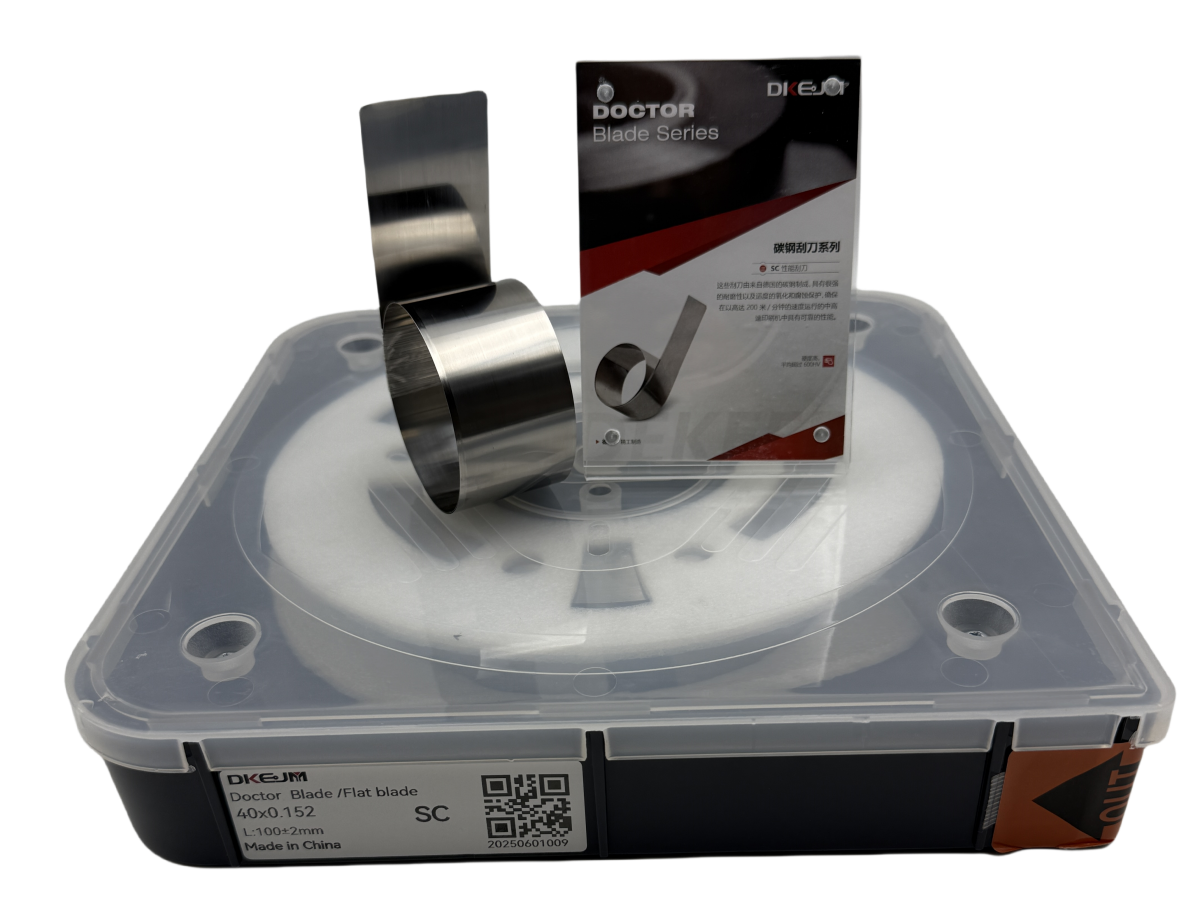

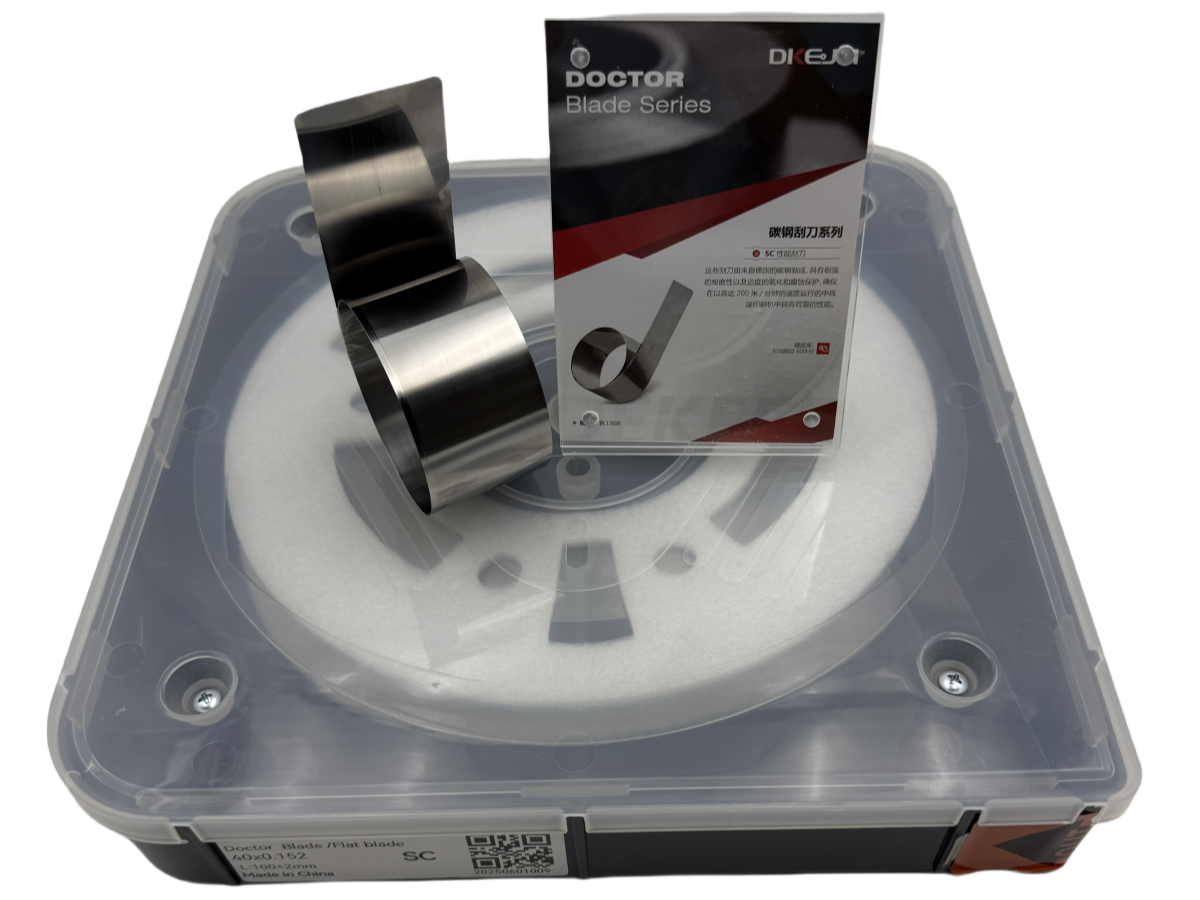

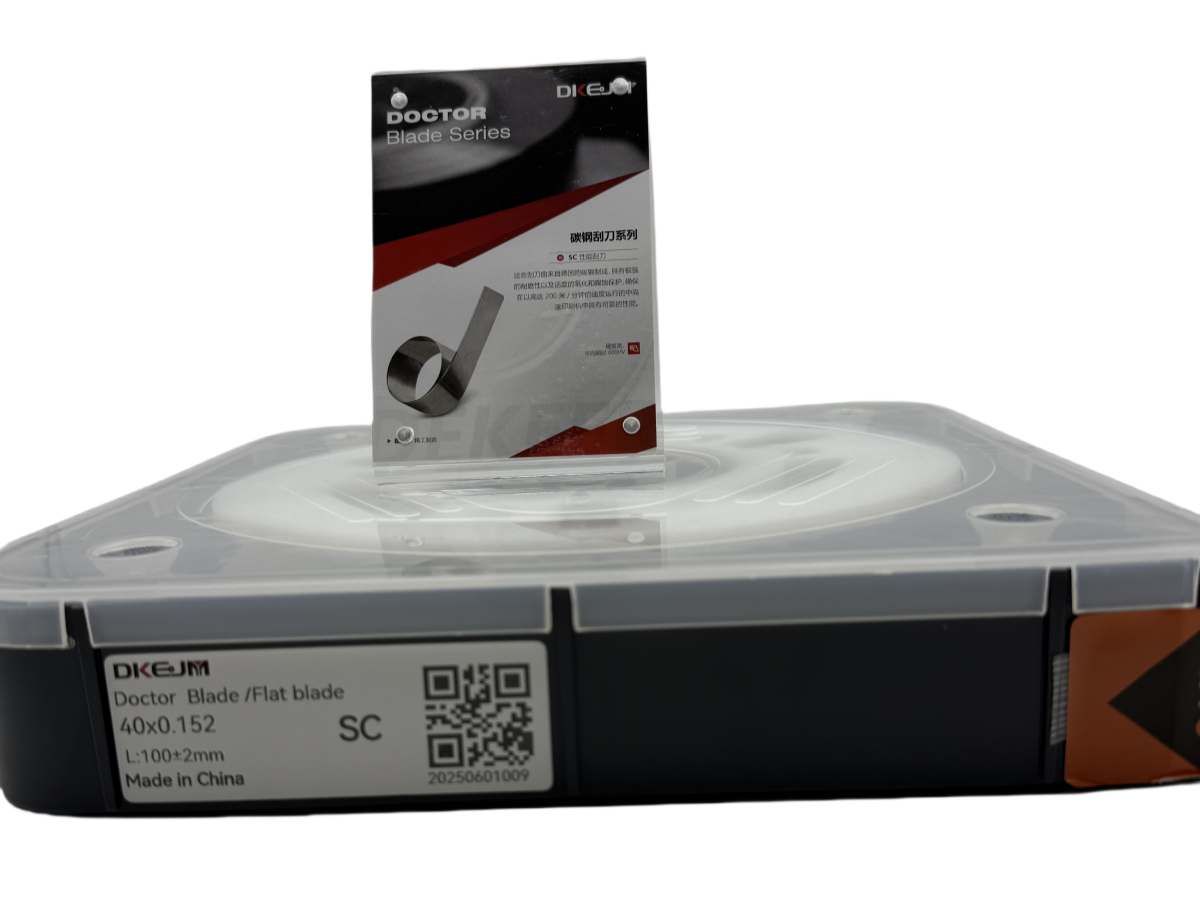

SC Doctor Blade

Width Range: 10mm-60mm

Width Tolerance: ±0.1mm

Thickness Range: 0.152mm-0.203mm

Thickness Tolerance: ±0.005mm

Hardness: 580-600HV

Tensile Strength: 1800Pa

Machine Speed: ≤ 200 m/min

Coating thickness:



Blade Edge  Shapes



Short Lamella Blade EdgeLong Lamella Blade Edge
Short Bevel Blade EdgeLong Bevel Blade Edge
Round Blade EdgeSquare Blade Edge



Key attributes

core componentsbladewarranty3 months
brand namedekeerplace of originAnhui, China
type

Doctor Blade

Product nameSC Doctor Blade
ApplicationGravure printing, Flexo printing, Roller Coating, Adhesive coatingMaterialCarbon Steel
Ink TypesSolvent-based inks, Varnish


Packaging and delivery

Selling UnitsSingle itemSingle package size25X25X30 cm
Single gross weight10.000 KG


Made from carbon steel from Germany, these blades offer high wear resistance as well asmoderate oxidation and corrosion protection, ensuring reliable performance in medium anohigh-speed presses running at speeds of up to 200 m/min.
